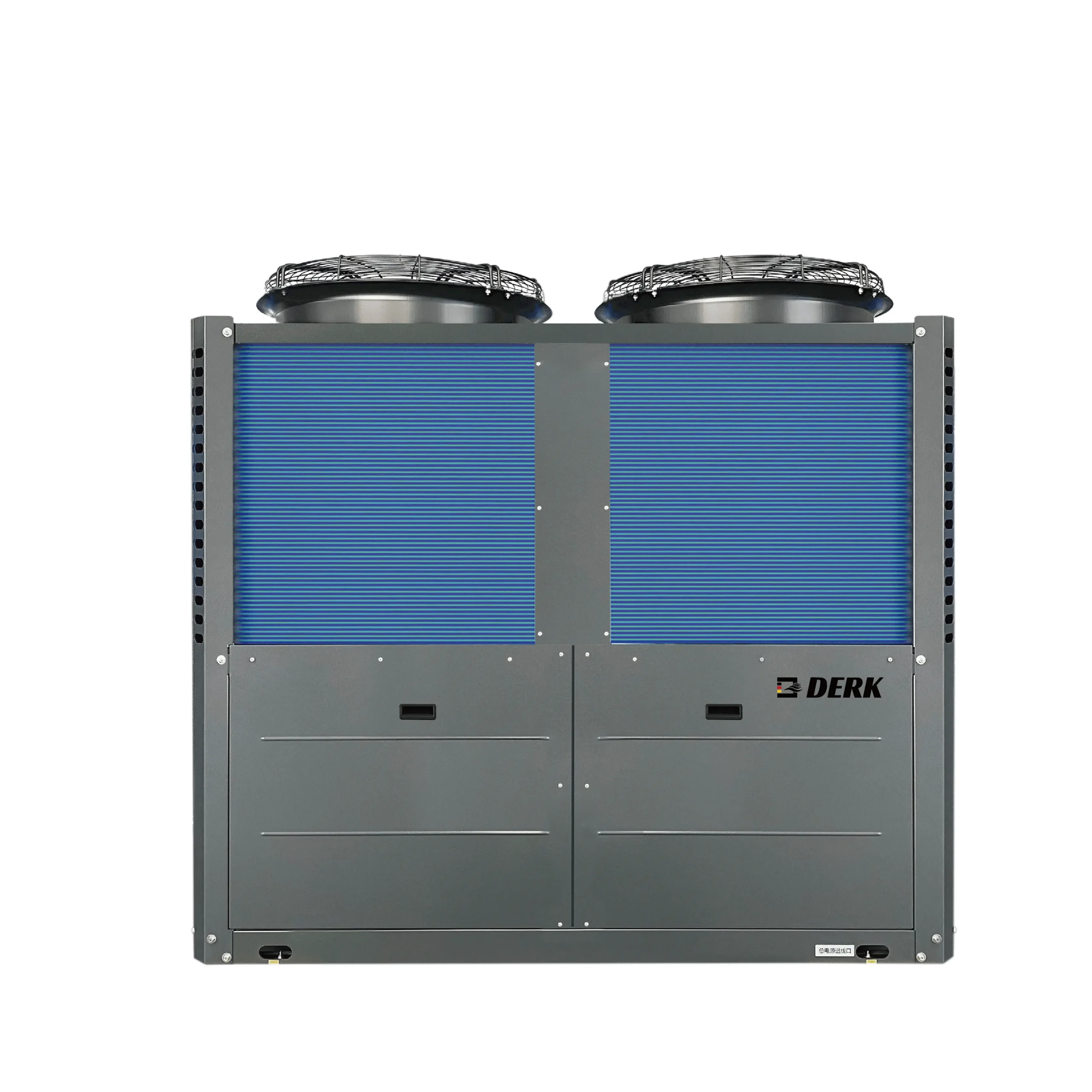

EVI Scroll, fixed speed
Model: DH-E200SD
Power Supply: 380-415V 3N~50Hz
EER: N/A (heating only)
COP: 4.33
Refrigeration: R410A
Compressor: Copeland / EVI scroll (fixed speed)
Air side heat exchanger: Fin-coil
Motor: AC motor
Fan: Low Noise Axial Fan; Air flow volume: 47,000m³/h
Water side heat exchanger: Tube-in-Tube
Ambient Temp. Range: -35℃~46℃
Leaving Water Temp. Range: 20℃~55℃ (Default: 50℃)
Unit Dimension (W×H×D): 2200×2370×1120 mm
Package Dimension (W×H×D): 2300×2500×1180 mm
Net Weight: 940 kg
Operation Weight: 1,010 kg
Gross Weight: 960 kg
It extracts heat from ambient air through a refrigerant cycle and transfers it into water, producing hot water with a COP of 3-4 and cutting water heating energy costs by roughly 70% compared with electric heaters.
Commercial models range from 20 kW to 400 kW, suitable for hotels, hospitals, schools, swimming pools and industrial process hot water.
Yes. Ultra-low-temperature models are engineered to work reliably down to about -25°C ambient, using enhanced vapor injection compressors to maintain heating performance in winter.
A single unit can supply multiple insulated storage tanks through a circulation loop. We also provide matched tank and controller packages for complete hot water systems.
No. Connect the water pipes and power supply, set the controller, and the unit self-adapts. Our engineers provide remote commissioning guidance for every project.
