Ceiling and floor series

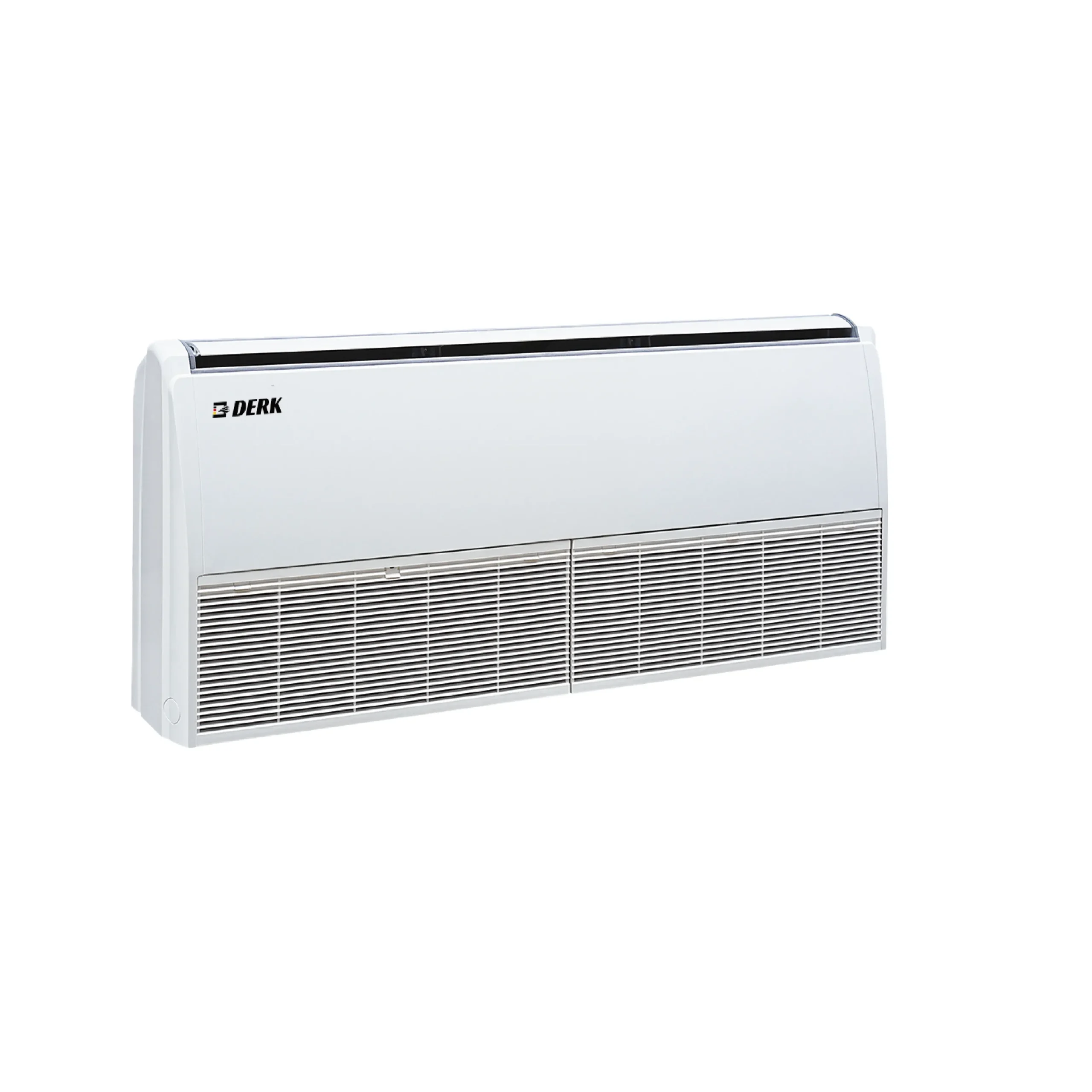

Ceiling & Floor A Series, 2-pipe
Ceiling & Floor A Series, 2-pipe ｜ DCFA-E/AL+200/300/400/500
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;1.08~4.50kW
Water flow rate: 0.31~0.77 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 1.62~6.75kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 887 mm × 235 mm × 698 mm
Air flow rate (H/M/L) : 170~850 m³/h (100~500 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 1.08~4.50kW
Water pressure drop: 30 kPa
Power input: 22~74 W
Rated current: 0.10~0.34 A
Sound pressure level: 37~43 dB(A)
Net / Gross weight : 20.0~20.5 / 22.5~23.0 kg
Packing size(L×W×H) : 970 mm × 320 mm × 765 mm

Ceiling & Floor A Series, 2-pipe ｜ DCFA-E/AL+600/700/800
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;3.24~7.20kW
Water flow rate: 0.94~1.22 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 4.86~10.80kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1287 mm × 235 mm × 698 mm
Air flow rate (H/M/L) : 510~1,360 m³/h (300~800 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 3.24~7.20kW
Water pressure drop: 40 kPa
Power input: 56~130 W
Rated current: 0.25~0.59 A
Sound pressure level: 45~46 dB(A)
Net / Gross weight : 29.5 / 33.0 kg
Packing size(L×W×H) : 1375 mm × 320 mm × 765 mm

Ceiling & Floor A Series, 2-pipe ｜ DCFA-E/AL+1000/1200/1400
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;5.40~12.60kW
Water flow rate: 1.56~2.16 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 8.10~18.90kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1687 mm × 235 mm × 698 mm
Air flow rate (H/M/L) : 850~2,380 m³/h (500~1,400 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 5.40~12.60kW
Water pressure drop: 40~50 kPa
Power input: 88~221 W
Rated current: 0.40~1.00 A
Sound pressure level: 48~52 dB(A)
Net / Gross weight : 42.0 / 46.0 kg
Packing size(L×W×H) : 1775 mm × 320 mm × 765 mm
