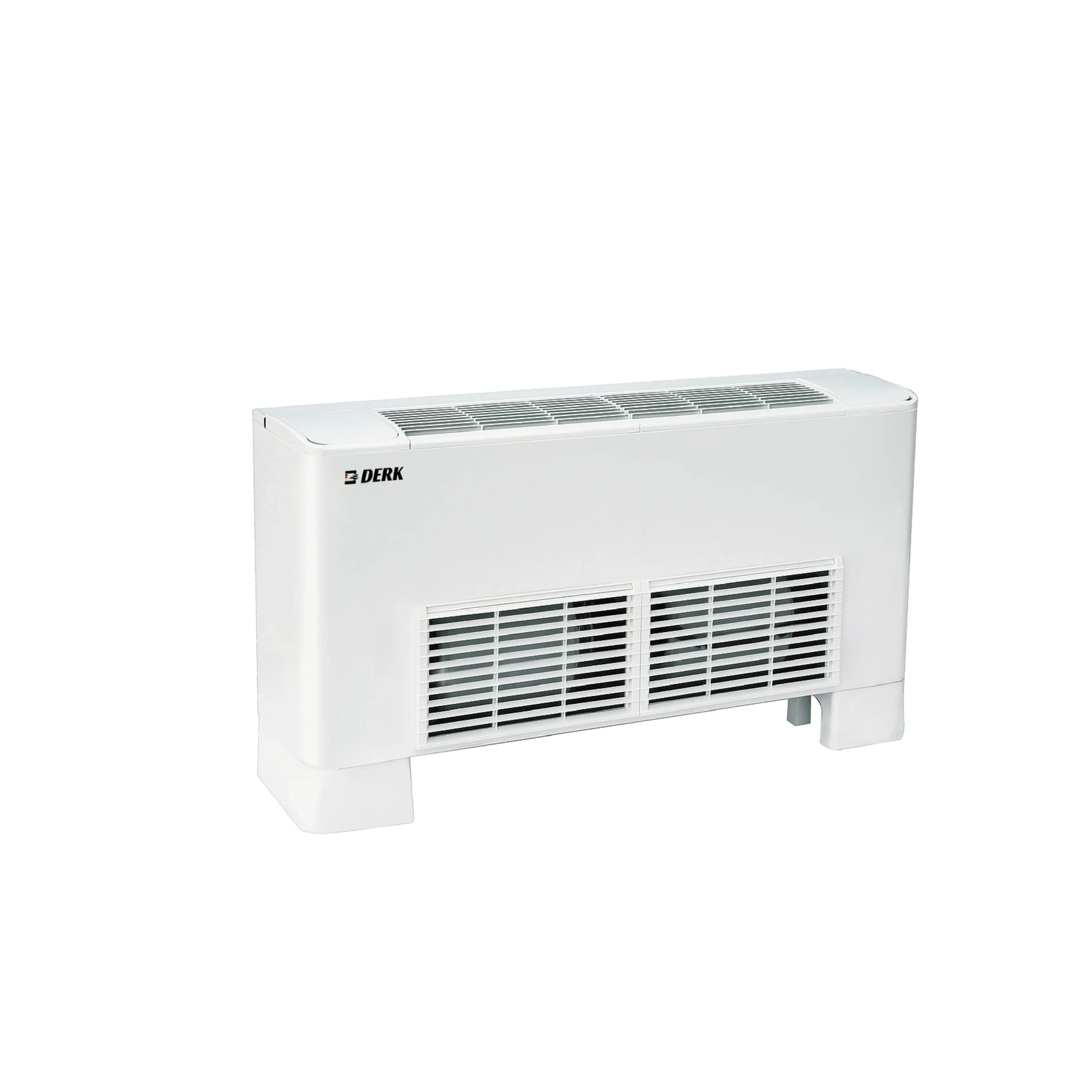

Console B Series, 2-pipe
Console B Series, 2-pipe ｜ DCNB-E/AL+200/300/400/500
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;1.08~4.50kW
Water flow rate: 0.31~0.77 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 1.62~6.75kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1015 mm × 246 mm × 485 mm ｜ With feet dimension: 1015 mm × 246 mm × 585 mm
Air flow rate (H/M/L) : 170~850 m³/h (100~500 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 1.08~4.50kW
Water pressure drop: 30 kPa
Power input: 22~74 W
Rated current: 0.10~0.34 A
Sound pressure level: 37~43 dB(A)
Net / Gross weight : 20.0~20.4 / 22.3~22.8 kg
Packing size(L×W×H) : 1115 mm × 303 mm × 520 mm

Console B Series, 2-pipe ｜ DCNB-E/AL+600/700
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;3.24~6.30kW
Water flow rate: 0.94~1.05 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 4.86~9.45kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1370 mm × 246 mm × 485 mm ｜ With feet dimension: 1370 mm × 246 mm × 585 mm
Air flow rate (H/M/L) : 510~1,190 m³/h (300~700 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 3.24~6.30kW
Water pressure drop: 40 kPa
Power input: 56~112 W
Rated current: 0.25~0.51 A
Sound pressure level: 45~46 dB(A)
Net / Gross weight : 27.5 / 30.5 kg
Packing size(L×W×H) : 1470 mm × 303 mm × 520 mm

Console B Series, 2-pipe ｜ DCNB-E/AL+800/1000
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;4.32~9.00kW
Water flow rate: 1.22~1.56 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 6.48~13.50kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1725 mm × 246 mm × 485 mm ｜ With feet dimension: 1725 mm × 246 mm × 585 mm
Air flow rate (H/M/L) : 680~1,700 m³/h (400~1,000 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 4.32~9.00kW
Water pressure drop: 40 kPa
Power input: 78~147 W
Rated current: 0.35~0.67 A
Sound pressure level: 46~48 dB(A)
Net / Gross weight : 37.5 / 41.0 kg
Packing size(L×W×H) : 1825 mm × 303 mm × 520 mm

Console B Series, 2-pipe ｜ DCNB-E/AL+1200/1400
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;6.48~12.60kW
Water flow rate: 1.85~2.16 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 9.72~18.90kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 2080 mm × 246 mm × 485 mm ｜ With feet dimension: 2080 mm × 246 mm × 585 mm
Air flow rate (H/M/L) : 1,020~2,380 m³/h (600~1,400 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 6.48~12.60kW
Water pressure drop: 40~50 kPa
Power input: 114~221 W
Rated current: 0.52~1.00 A
Sound pressure level: 50~52 dB(A)
Net / Gross weight : 44.5 / 48.6 kg
Packing size(L×W×H) : 2180 mm × 303 mm × 520 mm

Console B Series, 4-pipe
Console B Series, 4-pipe ｜ DCNB-E/APL+200/300/400/500
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;1.08~4.50kW
Water flow rate: 0.31~0.77 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 0.73~3.03kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1015 mm × 246 mm × 485 mm ｜ With feet dimension: 1015 mm × 246 mm × 585 mm
Air flow rate (H/M/L) : 170~850 m³/h (100~500 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 0.49~2.02kW
Water pressure drop: 30 kPa
Power input: 22~74 W
Rated current: 0.10~0.34 A
Sound pressure level: 37~43 dB(A)
Net / Gross weight : 20.0~20.4 / 22.3~22.8 kg
Packing size(L×W×H) : 1115 mm × 303 mm × 520 mm

Console B Series, 4-pipe ｜ DCNB-E/APL+600/700
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;3.24~6.30kW
Water flow rate: 0.94~1.05 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 2.19~4.25kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1370 mm × 246 mm × 485 mm ｜ With feet dimension: 1370 mm × 246 mm × 585 mm
Air flow rate (H/M/L) : 510~1,190 m³/h (300~700 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 1.46~2.83kW
Water pressure drop: 40 kPa
Power input: 56~112 W
Rated current: 0.25~0.51 A
Sound pressure level: 45~46 dB(A)
Net / Gross weight : 27.5 / 30.5 kg
Packing size(L×W×H) : 1470 mm × 303 mm × 520 mm

Console B Series, 4-pipe ｜ DCNB-E/APL+800/1000
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;4.32~9.00kW
Water flow rate: 1.22~1.56 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 2.92~6.07kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1725 mm × 246 mm × 485 mm ｜ With feet dimension: 1725 mm × 246 mm × 585 mm
Air flow rate (H/M/L) : 680~1,700 m³/h (400~1,000 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 1.94~4.05kW
Water pressure drop: 40 kPa
Power input: 78~147 W
Rated current: 0.35~0.67 A
Sound pressure level: 46~48 dB(A)
Net / Gross weight : 37.5 / 41.0 kg
Packing size(L×W×H) : 1825 mm × 303 mm × 520 mm

Console B Series, 4-pipe ｜ DCNB-E/APL+1200/1400
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;6.48~12.60kW
Water flow rate: 1.85~2.16 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 4.37~8.50kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 2080 mm × 246 mm × 485 mm ｜ With feet dimension: 2080 mm × 246 mm × 585 mm
Air flow rate (H/M/L) : 1,020~2,380 m³/h (600~1,400 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 2.92~5.67kW
Water pressure drop: 40~50 kPa
Power input: 114~221 W
Rated current: 0.52~1.00 A
Sound pressure level: 50~52 dB(A)
Net / Gross weight : 44.5 / 48.6 kg
Packing size(L×W×H) : 2180 mm × 303 mm × 520 mm
