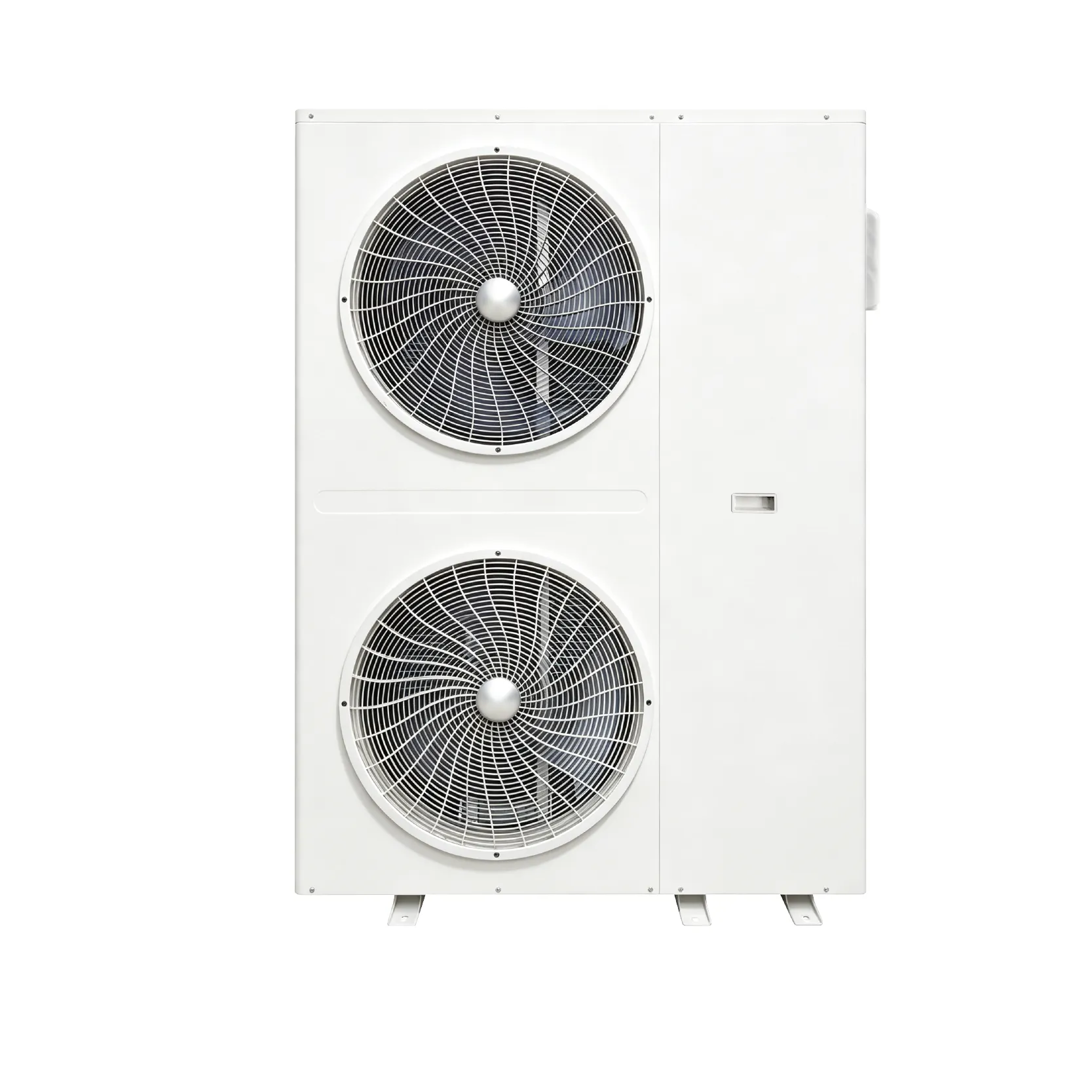

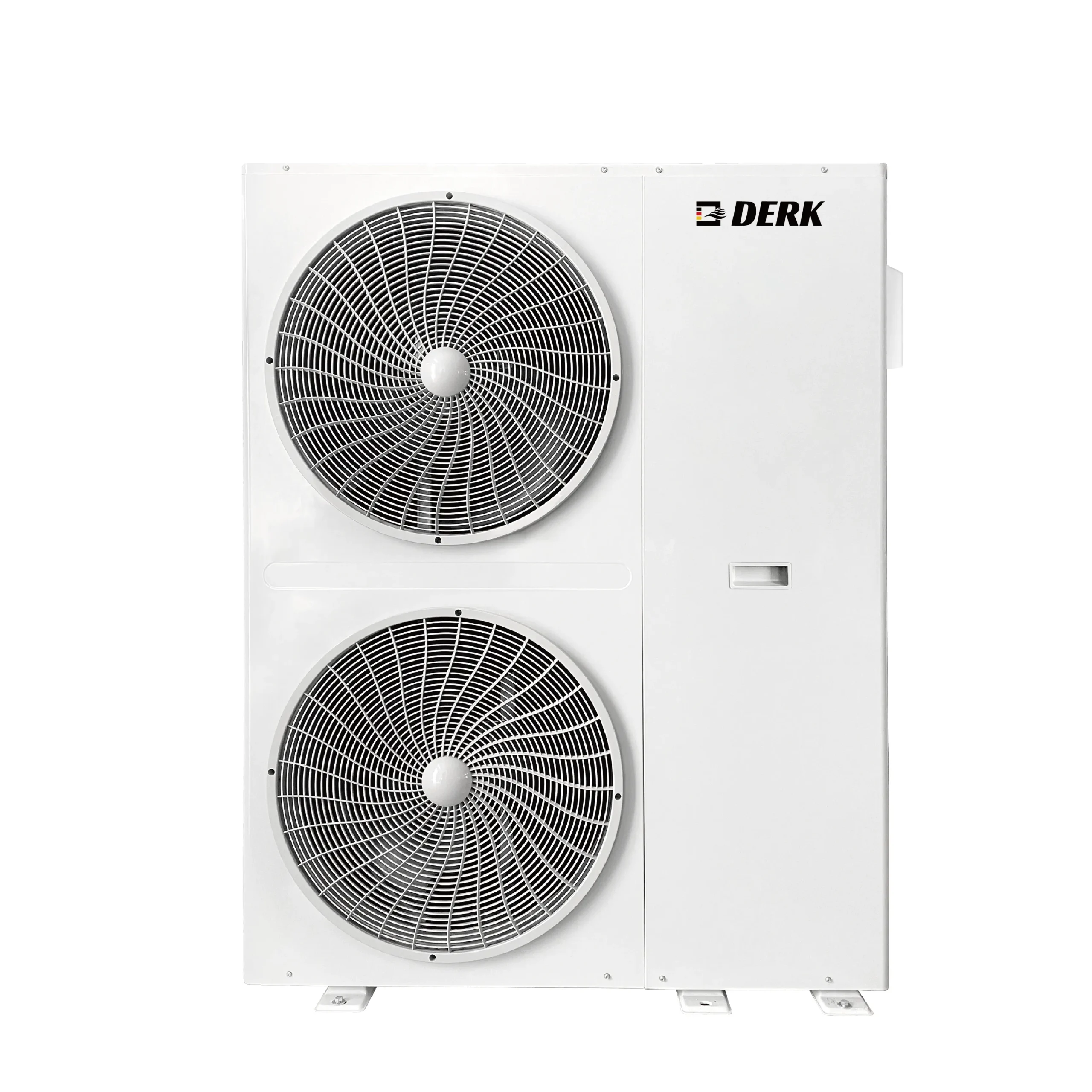

DC Inverter
Model：DMC-V36N1T
Power Supply: 380V-415 3N~50/60Hz
EER: 2.78
COP: 3.37
Refrigeration: R32
Compressor: GMCC / DC Inverter Rotary
Air side heat exchanger: Fin-coil
Motor: DC motor
Fan: Low Noise Axial Fan; Air flow volume: 9,300m³/ h
Throttling Mode: EXV
Water side heat exchanger: Plate type
Water pipe connection: Male thread, DN40
Ambient Temp. Range: Cooling 5℃~52℃; Heating -25℃～25℃
Leaving Water Temp. Range: Cooling 5℃～20℃; Heating 25℃～60℃
It is a compact water chiller with inverter-driven DC compressors and fans that modulate cooling capacity from roughly 20% to 100%, saving up to about 40% energy compared with fixed-speed models at partial load.
Mini chillers are ideal for small commercial buildings, hotels, villas, laboratories, telecom shelters and process cooling where space, weight and quiet operation matter.
Low-speed operation keeps sound pressure levels around 52 dB(A) at 1 m on typical models, thanks to low-speed inverter fans and sound-insulated compressor compartments.
The full DC inverter mini chiller range covers approximately 8-30 kW per unit, and multiple units can be grouped to cover larger cooling loads.
Yes. Mini chillers connect directly to DERK fan coil units, cassette and duct units through a simple chilled-water loop, and we can supply a matched system for turnkey projects.
