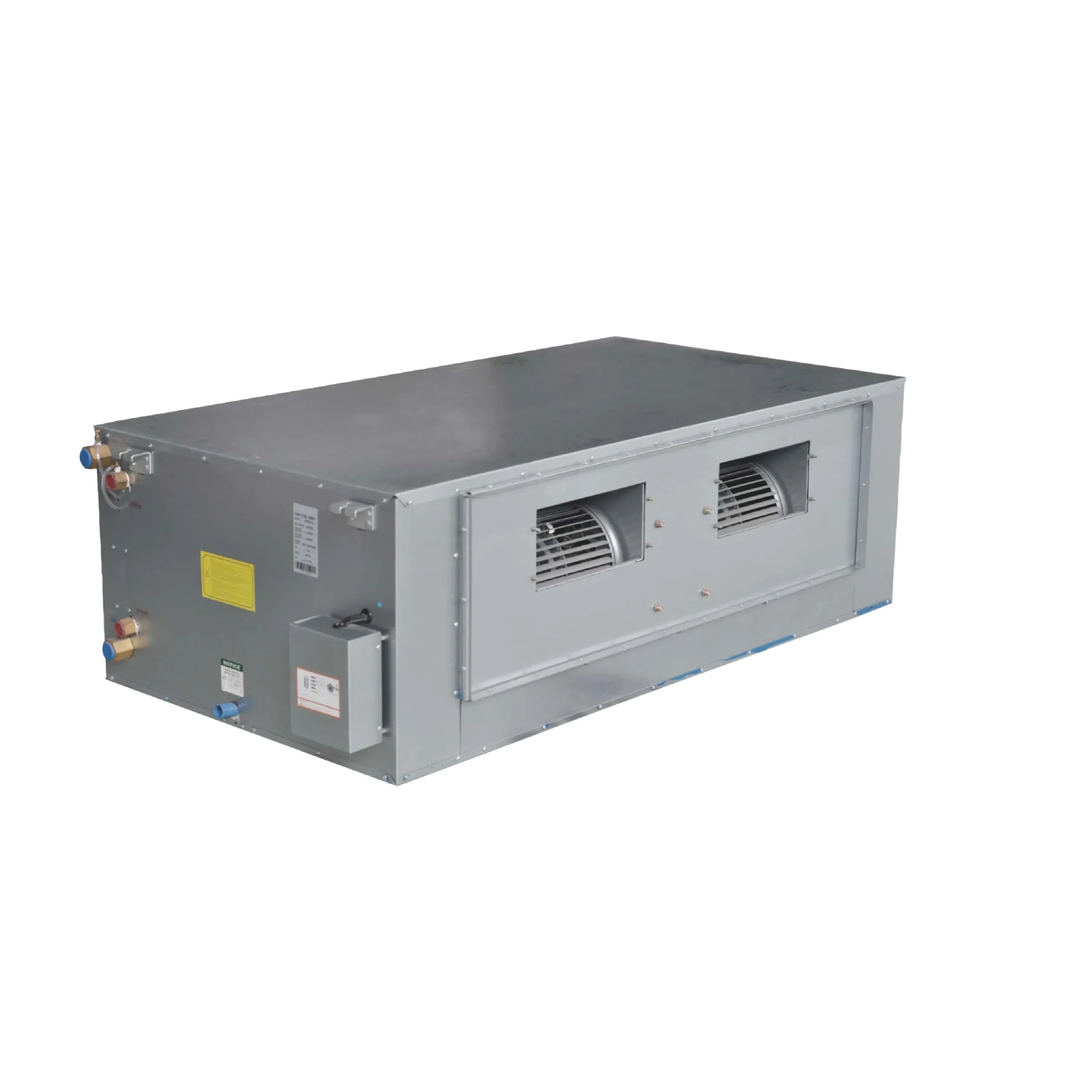

High ESP Duct A Series, 2-pipe ｜ DT1A-AG110L+800
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;4.80~6.40kW
Water flow rate: 1.22 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 7.20~9.70kW
Motor: AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1090 mm × 568 mm × 340 mm
Air flow rate (H/M/L) : 669~1,001 m³/h (394~589 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 4.80~6.40kW
Water pressure drop: 40 kPa
Power input: 368 W
Rated current: 1.67 A
Sound pressure level: 50 dB(A)
Net / Gross weight : 43.0 / 45.5 kg
Packing size(L×W×H) : 1130 mm × 610 mm × 350 mm
High ESP Duct A Series, 2-pipe ｜ DT1A-AG110L+1000
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;6.40~9.10kW
Water flow rate: 1.56 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 9.60~13.70kW
Motor: AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1190 mm × 568 mm × 340 mm
Air flow rate (H/M/L) : 910~1,516 m³/h (535~892 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 6.40~9.10kW
Water pressure drop: 40 kPa
Power input: 460 W
Rated current: 2.09 A
Sound pressure level: 52 dB(A)
Net / Gross weight : 46.0 / 48.6 kg
Packing size(L×W×H) : 1230 mm × 610 mm × 350 mm
High ESP Duct A Series, 2-pipe ｜ DT1A-AG110L+1200
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;8.80~12.60kW
Water flow rate: 1.85 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 13.10~18.80kW
Motor: AC;
Hydraulic connections: Rc 1 ”
Indoor unit dimension(L×W×H) : 1290 mm × 568 mm × 390 mm
Air flow rate (H/M/L) : 1,232~2,053 m³/h (725~1,208 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 8.80~12.60kW
Water pressure drop: 40 kPa
Power input: 564 W
Rated current: 2.56 A
Sound pressure level: 55 dB(A)
Net / Gross weight : 51.4 / 54.2 kg
Packing size(L×W×H) : 1330 mm × 610 mm × 400 mm
High ESP Duct A Series, 2-pipe ｜ DT1A-AG110L+1400
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;10.50~15.10kW
Water flow rate: 2.16 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 15.70~22.60kW
Motor: AC;
Hydraulic connections: Rc 1 ”
Indoor unit dimension(L×W×H) : 1450 mm × 688 mm × 390 mm
Air flow rate (H/M/L) : 1,444~2,406 m³/h (849~1,415 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 10.50~15.10kW
Water pressure drop: 50 kPa
Power input: 650 W
Rated current: 2.95 A
Sound pressure level: 58 dB(A)
Net / Gross weight : 62.0 / 65.4 kg
Packing size(L×W×H) : 1490 mm × 725 mm × 400 mm
High ESP Duct A Series, 2-pipe ｜ DT1A-AG110L+1700
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;13.80~19.80kW
Water flow rate: 2.76 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 20.70~29.70kW
Motor: AC;
Hydraulic connections: Rc 1 ”
Indoor unit dimension(L×W×H) : 1490 mm × 688 mm × 450 mm
Air flow rate (H/M/L) : 1,960~3,267 m³/h (1,153~1,922 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 13.80~19.80kW
Water pressure drop: 50 kPa
Power input: 845 W
Rated current: 3.84 A
Sound pressure level: 59 dB(A)
Net / Gross weight : 69.0 / 73.8 kg
Packing size(L×W×H) : 1535 mm × 730 mm × 460 mm
High ESP Duct A Series, 2-pipe ｜ DT1A-AG110L+2000
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;14.70~22.20kW
Water flow rate: 3.65 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 22.10~33.30kW
Motor: AC;
Hydraulic connections: Rc 1 ”
Indoor unit dimension(L×W×H) : 1620 mm × 863 mm × 450 mm
Air flow rate (H/M/L) : 2,013~3,590 m³/h (1,184~2,112 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 14.70~22.20kW
Water pressure drop: 50 kPa
Power input: 934 W
Rated current: 4.25 A
Sound pressure level: 60 dB(A)
Net / Gross weight : 80.0 / 84.0 kg
Packing size(L×W×H) : 1660 mm × 905 mm × 510 mm
High ESP Duct A Series, 2-pipe ｜ DT1A-AG110L+2400
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;17.80~25.60kW
Water flow rate: 4.86 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 26.70~38.30kW
Motor: AC;
Hydraulic connections: Rc 1 ”
Indoor unit dimension(L×W×H) : 1640 mm × 863 mm × 500 mm
Air flow rate (H/M/L) : 2,465~4,108 m³/h (1,450~2,416 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 17.80~25.60kW
Water pressure drop: 60 kPa
Power input: 1128 W
Rated current: 5.13 A
Sound pressure level: 64 dB(A)
Net / Gross weight : 92.0 / 97.0 kg
Packing size(L×W×H) : 1680 mm × 905 mm × 510 mm
High ESP Duct A Series, 2-pipe ｜ DT1A-AG110L+3000
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;21.50~32.60kW
Water flow rate: 6.89 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 32.20~48.90kW
Motor: AC;
Hydraulic connections: Rc 1 ”
Indoor unit dimension(L×W×H) : 1940 mm × 863 mm × 500 mm
Air flow rate (H/M/L) : 2,851~5,070 m³/h (1,677~2,982 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 21.50~32.60kW
Water pressure drop: 80 kPa
Power input: 1445 W
Rated current: 6.57 A
Sound pressure level: 68 dB(A)
Net / Gross weight : 108.0 / 113.2 kg
Packing size(L×W×H) : 2010 mm × 905 mm × 510 mm
A ducted FCU is concealed above the ceiling and distributes conditioned air through ductwork, providing invisible, uniform comfort for offices, hotels, shops and homes.
Standard concealed units offer around 30-80 Pa, while high-static-pressure models reach approximately 120-200 Pa for long or complex duct runs in commercial buildings.
Ultra-thin models are as low as about 200-230 mm in height, allowing installation in shallow ceiling plenums without lowering the ceiling.
Yes. Options include 2-pipe and 4-pipe hydronic coils, electric heater kits and hot-water coils to match the heating source available at the project.
We supply flexible ducts, grilles, filters, wired or wireless controllers, and BMS interfaces as part of complete project packages.
