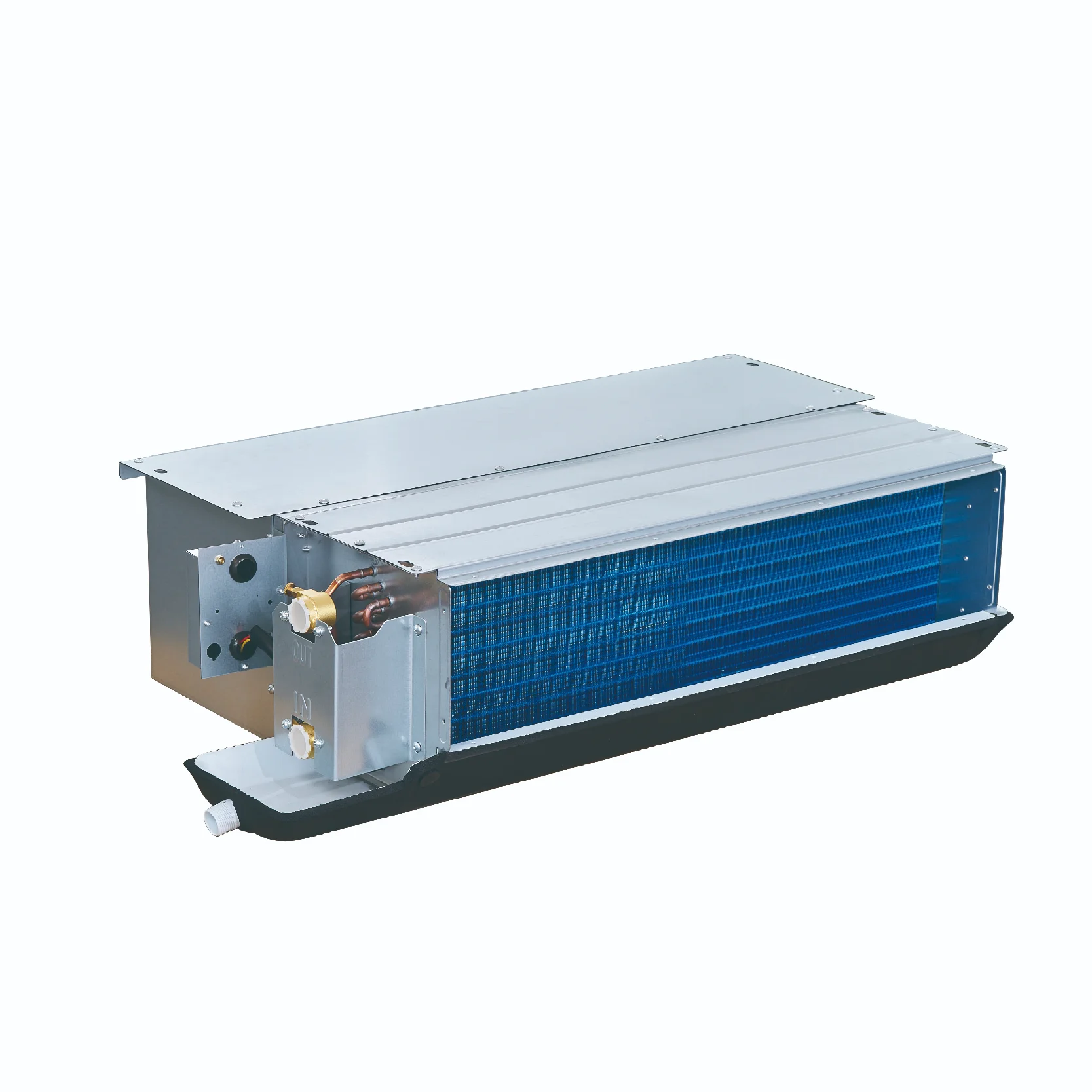

Medium ESP Duct

Medium ESP Duct B Series, 4-pipe
Medium ESP Duct B Series, 4-pipe ｜ DT2B-E/APG30L+200
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;1.08~1.80kW
Water flow rate: 0.31 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 0.73~1.21kW
Motor: EC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 635 mm × 452 mm × 232 mm ｜ With air plenum dimension: 635 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 170~340 m³/h (100~200 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 0.49~0.81kW
Water pressure drop: 30 kPa
Power input (12Pa/30Pa/50Pa): 22~48 W
Rated current (12Pa/30Pa/50Pa): 0.10~0.22 A
Sound pressure level (12Pa/30Pa/50Pa): 37~42 dB(A)
Net / Gross weight : 9.0 / 10.5 kg
Packing size(L×W×H) : 685 mm × 480 mm × 250 mm

Medium ESP Duct B Series, 4-pipe ｜ DT2B-E/APG30L+300
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;1.62~2.70kW
Water flow rate: 0.47 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 1.09~1.82kW
Motor: EC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 785 mm × 452 mm × 232 mm ｜ With air plenum dimension: 785 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 255~510 m³/h (150~300 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 0.73~1.21kW
Water pressure drop: 30 kPa
Power input (12Pa/30Pa/50Pa): 30~64 W
Rated current (12Pa/30Pa/50Pa): 0.14~0.29 A
Sound pressure level (12Pa/30Pa/50Pa): 39~44 dB(A)
Net / Gross weight : 11.0 / 12.5 kg
Packing size(L×W×H) : 825 mm × 480 mm × 250 mm

Medium ESP Duct B Series, 4-pipe ｜ DT2B-E/APG30L+400
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;2.16~3.60kW
Water flow rate: 0.61 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 1.46~2.43kW
Motor: EC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 865 mm × 452 mm × 232 mm ｜ With air plenum dimension: 865 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 340~680 m³/h (200~400 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 0.97~1.62kW
Water pressure drop: 30 kPa
Power input (12Pa/30Pa/50Pa): 36~81 W
Rated current (12Pa/30Pa/50Pa): 0.16~0.37 A
Sound pressure level (12Pa/30Pa/50Pa): 41~46 dB(A)
Net / Gross weight : 11.5 / 13.5 kg
Packing size(L×W×H) : 905 mm × 480 mm × 250 mm

Medium ESP Duct B Series, 4-pipe ｜ DT2B-E/APG30L+500
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;2.70~4.50kW
Water flow rate: 0.77 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 1.82~3.03kW
Motor: EC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 925 mm × 452 mm × 232 mm ｜ With air plenum dimension: 925 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 425~850 m³/h (250~500 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 1.21~2.02kW
Water pressure drop: 30 kPa
Power input (12Pa/30Pa/50Pa): 44~97 W
Rated current (12Pa/30Pa/50Pa): 0.20~0.44 A
Sound pressure level (12Pa/30Pa/50Pa): 43~47 dB(A)
Net / Gross weight : 13.5 / 15.5 kg
Packing size(L×W×H) : 965 mm × 480 mm × 250 mm

Medium ESP Duct B Series, 4-pipe ｜ DT2B-E/APG30L+600
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;3.24~5.40kW
Water flow rate: 0.94 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 2.19~3.65kW
Motor: EC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1025 mm × 452 mm × 232 mm ｜ With air plenum dimension: 1025 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 510~1,020 m³/h (300~600 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 1.46~2.43kW
Water pressure drop: 40 kPa
Power input (12Pa/30Pa/50Pa): 56~114 W
Rated current (12Pa/30Pa/50Pa): 0.25~0.52 A
Sound pressure level (12Pa/30Pa/50Pa): 45~49 dB(A)
Net / Gross weight : 14.0 / 16.5 kg
Packing size(L×W×H) : 1065 mm × 480 mm × 250 mm

Medium ESP Duct B Series, 4-pipe ｜ DT2B-E/APG30L+700/800
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;3.78~7.20kW
Water flow rate: 1.05~1.22 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 2.55~4.86kW
Motor: EC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1205 mm × 452 mm × 232 mm ｜ With air plenum dimension: 1205 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 595~1,360 m³/h (350~800 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 1.70~3.24kW
Water pressure drop: 40 kPa
Power input (12Pa/30Pa/50Pa): 67~169 W
Rated current (12Pa/30Pa/50Pa): 0.30~0.77 A
Sound pressure level (12Pa/30Pa/50Pa): 46~50 dB(A)
Net / Gross weight : 15.5 / 18.5 kg
Packing size(L×W×H) : 1245 mm × 480 mm × 250 mm

Medium ESP Duct B Series, 4-pipe ｜ DT2B-E/APG30L+1000
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;5.40~9.00kW
Water flow rate: 1.56 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 3.64~6.07kW
Motor: EC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1455 mm × 452 mm × 232 mm ｜ With air plenum dimension: 1455 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 850~1,700 m³/h (500~1,000 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 2.43~4.05kW
Water pressure drop: 40 kPa
Power input (12Pa/30Pa/50Pa): 88~204 W
Rated current (12Pa/30Pa/50Pa): 0.40~0.93 A
Sound pressure level (12Pa/30Pa/50Pa): 48~52 dB(A)
Net / Gross weight : 22.1 / 25.6 kg
Packing size(L×W×H) : 1495 mm × 480 mm × 250 mm

Medium ESP Duct B Series, 4-pipe ｜ DT2B-E/APG30L+1200
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;6.48~10.80kW
Water flow rate: 1.85 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 4.37~7.29kW
Motor: EC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1705 mm × 452 mm × 232 mm ｜ With air plenum dimension: 1705 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 1,020~2,040 m³/h (600~1,200 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 2.92~4.86kW
Water pressure drop: 40 kPa
Power input (12Pa/30Pa/50Pa): 114~243 W
Rated current (12Pa/30Pa/50Pa): 0.52~1.10 A
Sound pressure level (12Pa/30Pa/50Pa): 50~54 dB(A)
Net / Gross weight : 25.0 / 29.0 kg
Packing size(L×W×H) : 1745 mm × 480 mm × 250 mm

Medium ESP Duct B Series, 4-pipe ｜ DT2B-E/APG30L+1400
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;7.56~12.60kW
Water flow rate: 2.16 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 5.10~8.50kW
Motor: EC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1955 mm × 452 mm × 232 mm ｜ With air plenum dimension: 1955 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 1,190~2,380 m³/h (700~1,400 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 3.40~5.67kW
Water pressure drop: 50 kPa
Power input (12Pa/30Pa/50Pa): 139~291 W
Rated current (12Pa/30Pa/50Pa): 0.63~1.32 A
Sound pressure level (12Pa/30Pa/50Pa): 52~56 dB(A)
Net / Gross weight : 27.0 / 32.0 kg
Packing size(L×W×H) : 1995 mm × 480 mm × 250 mm

Medium ESP Duct E Series (economy), 2-pipe
Medium ESP Duct E Series (economy), 2-pipe ｜ DT2E-AG30L+207
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;1.03~1.72kW
Water flow rate: 0.31 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 1.55~2.58kW
Motor: AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 635 mm × 452 mm × 232 mm ｜ With air plenum dimension: 635 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 176~352 m³/h (104~207 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 1.03~1.72kW
Water pressure drop: 5.5 kPa
Power input (30Pa): 31 W
Rated current (30Pa): 0.14 A
Sound pressure level (30Pa): 35.8 dB(A)
Net / Gross weight : 8.5 / 10 kg
Packing size(L×W×H) : 685 mm × 480 mm × 250 mm

Medium ESP Duct E Series (economy), 2-pipe ｜ DT2E-AG30L+322
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;1.65~2.75kW
Water flow rate: 0.49 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 2.47~4.12kW
Motor: AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 785 mm × 452 mm × 232 mm ｜ With air plenum dimension: 785 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 274~547 m³/h (161~322 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 1.65~2.75kW
Water pressure drop: 13.4 kPa
Power input (30Pa): 52 W
Rated current (30Pa): 0.24 A
Sound pressure level (30Pa): 36.7 dB(A)
Net / Gross weight : 10.4 / 11.9 kg
Packing size(L×W×H) : 825 mm × 480 mm × 250 mm

Medium ESP Duct E Series (economy), 2-pipe ｜ DT2E-AG30L+426
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;2.12~3.53kW
Water flow rate: 0.64 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 3.18~5.30kW
Motor: AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 865 mm × 452 mm × 232 mm ｜ With air plenum dimension: 865 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 363~725 m³/h (214~426 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 2.12~3.53kW
Water pressure drop: 23.6 kPa
Power input (30Pa): 67 W
Rated current (30Pa): 0.30 A
Sound pressure level (30Pa): 38.8 dB(A)
Net / Gross weight : 10.8 / 12.3 kg
Packing size(L×W×H) : 905 mm × 480 mm × 250 mm

Medium ESP Duct E Series (economy), 2-pipe ｜ DT2E-AG30L+546
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;2.59~4.32kW
Water flow rate: 0.78 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 3.89~6.48kW
Motor: AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 925 mm × 452 mm × 232 mm ｜ With air plenum dimension: 925 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 464~928 m³/h (273~546 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 2.59~4.32kW
Water pressure drop: 28.9 kPa
Power input (30Pa): 80 W
Rated current (30Pa): 0.36 A
Sound pressure level (30Pa): 43.2 dB(A)
Net / Gross weight : 12.7 / 14.2 kg
Packing size(L×W×H) : 965 mm × 480 mm × 250 mm

Medium ESP Duct E Series (economy), 2-pipe ｜ DT2E-AG30L+652
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;3.11~5.19kW
Water flow rate: 0.92 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 4.67~7.78kW
Motor: AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1025 mm × 452 mm × 232 mm ｜ With air plenum dimension: 1025 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 555~1,109 m³/h (326~652 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 3.11~5.19kW
Water pressure drop: 36.5 kPa
Power input (30Pa): 101 W
Rated current (30Pa): 0.46 A
Sound pressure level (30Pa): 43.4 dB(A)
Net / Gross weight : 13.1 / 14.6 kg
Packing size(L×W×H) : 1065 mm × 480 mm × 250 mm

Medium ESP Duct E Series (economy), 2-pipe ｜ DT2E-AG30L+745/817
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;3.60~6.87kW
Water flow rate: 1.05~1.21 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 5.40~10.31kW
Motor: AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1205 mm × 452 mm × 232 mm ｜ With air plenum dimension: 1205 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 634~1,389 m³/h (373~817 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 3.60~6.87kW
Water pressure drop: 27~33 kPa
Power input (30Pa): 118~145 W
Rated current (30Pa): 0.54~0.66 A
Sound pressure level (30Pa): 45.8~47.3 dB(A)
Net / Gross weight : 14.4 / 16.9 kg
Packing size(L×W×H) : 1245 mm × 480 mm × 250 mm; 1445 mm × 480 mm × 250 mm

Medium ESP Duct E Series (economy), 2-pipe ｜ DT2E-AG30L+1053
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;5.16~8.60kW
Water flow rate: 1.45 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 7.74~12.90kW
Motor: AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1455 mm × 452 mm × 232 mm ｜ With air plenum dimension: 1455 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 895~1,790 m³/h (526~1,053 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 5.16~8.60kW
Water pressure drop: 35.6 kPa
Power input (30Pa): 163 W
Rated current (30Pa): 0.74 A
Sound pressure level (30Pa): 45 dB(A)
Net / Gross weight : 20.7 / 23.2 kg
Packing size(L×W×H) : 1495 mm × 480 mm × 250 mm

Medium ESP Duct E Series (economy), 2-pipe ｜ DT2E-AG30L+1284
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;6.18~10.29kW
Water flow rate: 1.80 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 9.26~15.44kW
Motor: AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1705 mm × 452 mm × 232 mm ｜ With air plenum dimension: 1705 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 1,092~2,183 m³/h (642~1,284 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 6.18~10.29kW
Water pressure drop: 38.8 kPa
Power input (30Pa): 198 W
Rated current (30Pa): 0.90 A
Sound pressure level (30Pa): 48.5 dB(A)
Net / Gross weight : 23.4 / 25.9 kg
Packing size(L×W×H) : 1745 mm × 480 mm × 250 mm

Medium ESP Duct E Series (economy), 2-pipe ｜ DT2E-AG30L+1515
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;7.56~12.09kW
Water flow rate: 2.15 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 10.88~18.13kW
Motor: AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1955 mm × 452 mm × 232 mm ｜ With air plenum dimension: 1955 mm × 501 mm × 232 mm
Air flow rate (H/M/L) : 1,288~2,576 m³/h (758~1,515 CFM)
Power Supply : 220/1/50 V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 7.56~12.09kW
Water pressure drop: 49.6 kPa
Power input (30Pa): 234 W
Rated current (30Pa): 1.06 A
Sound pressure level (30Pa): 50.2 dB(A)
Net / Gross weight : 25.1 / 27.6 kg
Packing size(L×W×H) : 1995 mm × 480 mm × 250 mm
