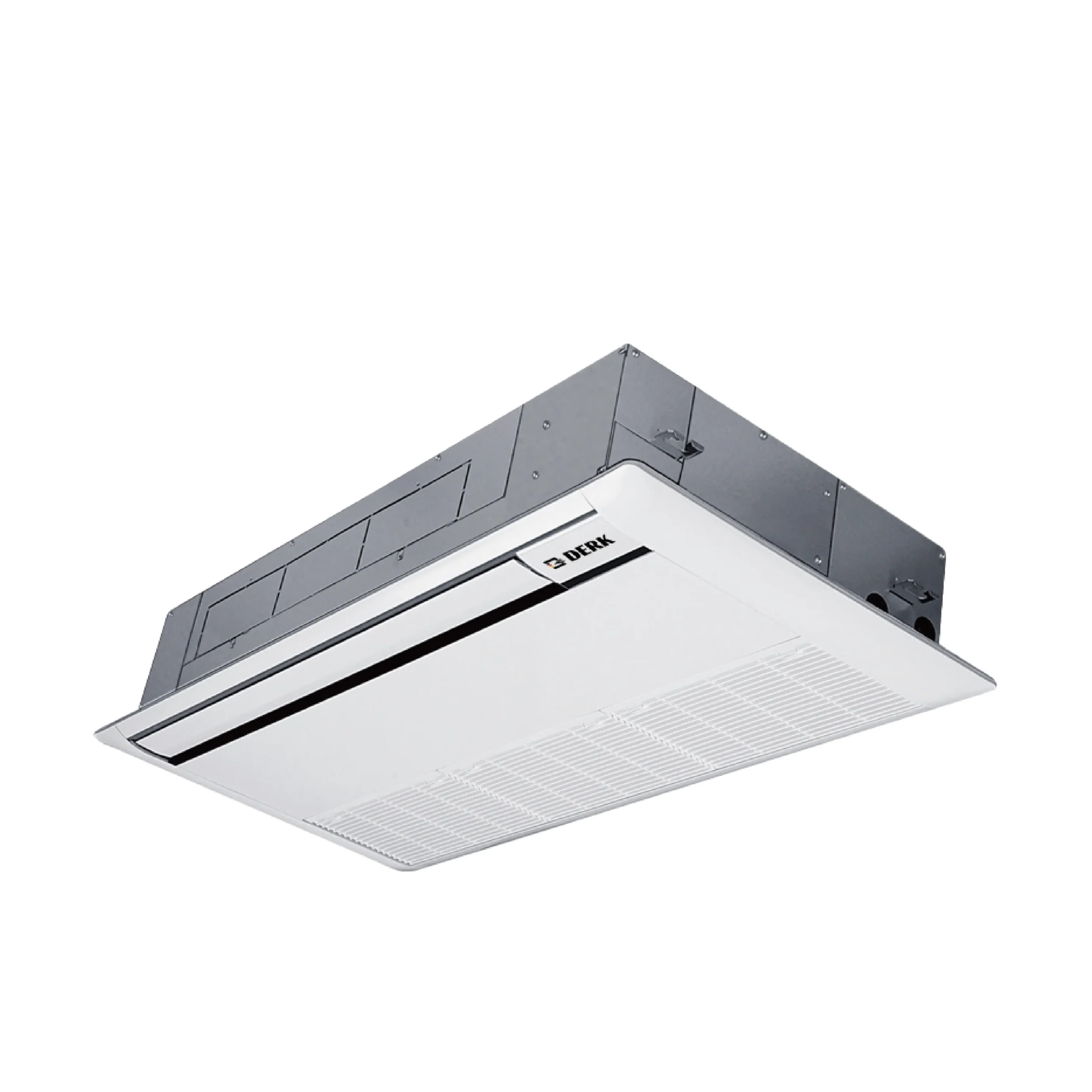

One-way Cassette

One-way Cassette D Series, 2-pipe ｜ DK1D-E/A+200/300/400/500
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;1.08~4.50kW
Water flow rate: 0.31~0.77 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 1.62~6.75kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 800 mm × 600 mm × 235 mm ｜ Panel dimension: 980 mm × 660 mm × 42 mm
Air flow rate (H/M/L) : 170~850 m³/h (100~500 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 1.08~4.50kW
Water pressure drop: 30 kPa
Power input: 22~74 W
Rated current: 0.10~0.34 A
Sound pressure level: 37~43 dB(A)
Net / Gross weight : 19.0~19.7 / 23.5~24.2 kg
Packing size(L×W×H) : 945 mm × 640 mm × 280 mm

One-way Cassette D Series, 2-pipe ｜ DK1D-E/A+600/700/800
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;3.24~7.20kW
Water flow rate: 0.94~1.22 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 4.86~10.80kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1200 mm × 600 mm × 235 mm ｜ Panel dimension: 1380 mm × 660 mm × 42 mm
Air flow rate (H/M/L) : 510~1,360 m³/h (300~800 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 3.24~7.20kW
Water pressure drop: 40 kPa
Power input: 56~130 W
Rated current: 0.25~0.59 A
Sound pressure level: 45~46 dB(A)
Net / Gross weight : 24.6 / 29.1 kg
Packing size(L×W×H) : 1345 mm × 640 mm × 280 mm

One-way Cassette D Series, 2-pipe ｜ DK1D-E/A+1000/1200/1400
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;5.40~12.60kW
Water flow rate: 1.56~2.16 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 8.10~18.90kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1600 mm × 600 mm × 235 mm ｜ Panel dimension: 1780 mm × 660 mm × 42 mm
Air flow rate (H/M/L) : 850~2,380 m³/h (500~1,400 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 5.40~12.60kW
Water pressure drop: 40~50 kPa
Power input: 88~221 W
Rated current: 0.40~1.00 A
Sound pressure level: 48~52 dB(A)
Net / Gross weight : 34.3 / 39.3 kg
Packing size(L×W×H) : 1745 mm × 640 mm × 280 mm
