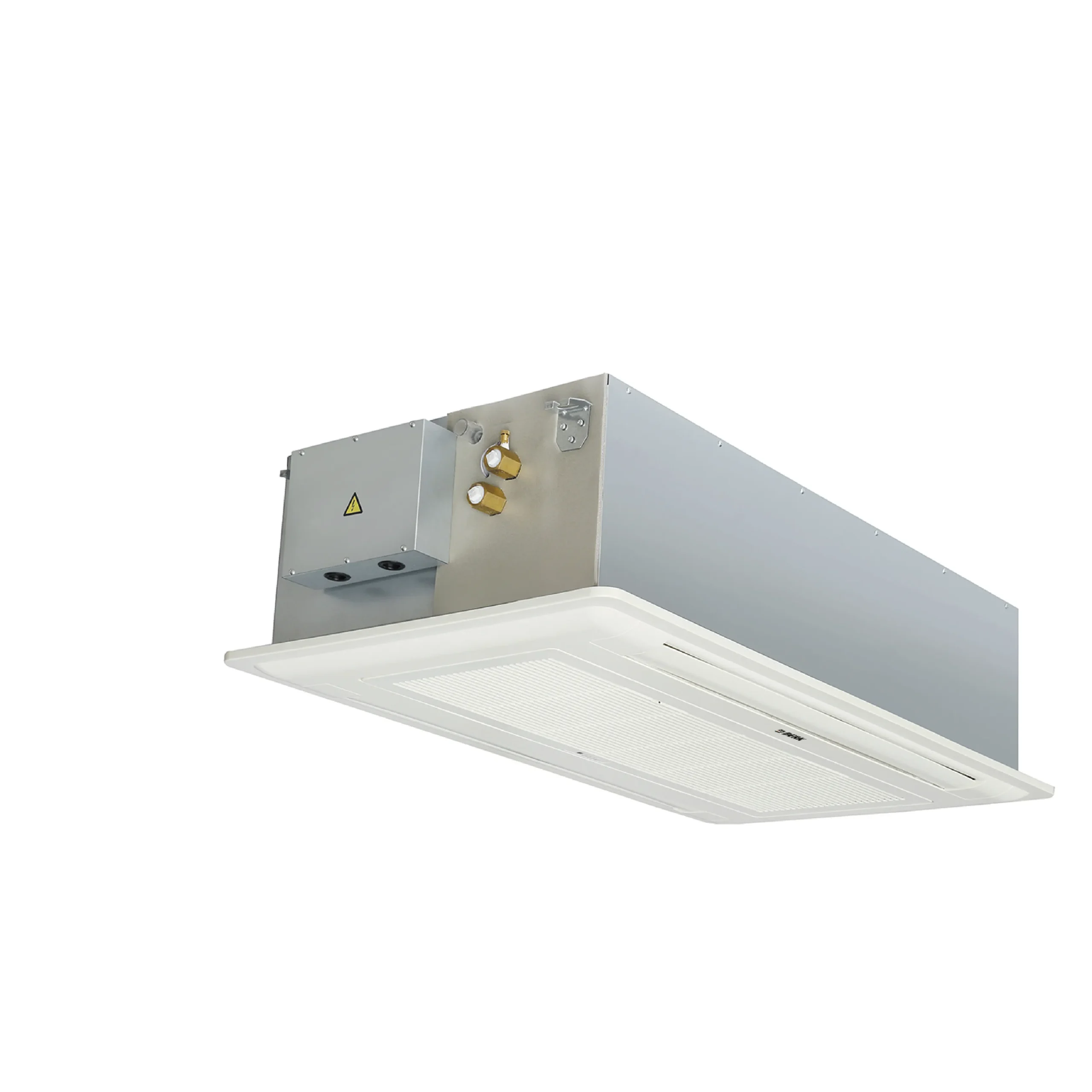

Two-way Cassette

Two-way Cassette A Series, 2-pipe ｜ DK2A-E/A+300/400/500/600/700/800
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;1.62~7.20kW
Water flow rate: 0.47~1.22 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 2.43~10.80kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1140 mm × 575 mm × 290 mm ｜ Panel dimension: 1240 mm × 680 mm × 30 mm
Air flow rate (H/M/L) : 255~1,360 m³/h (150~800 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 1.62~7.20kW
Water pressure drop: 30~40 kPa
Power input: 30~130 W
Rated current: 0.14~0.59 A
Sound pressure level: 39~46 dB(A)
Net / Gross weight : 25.0~30.0 / 28.5~33.5 kg
Packing size(L×W×H) : 1315 mm × 740 mm × 300 mm
Max. working pressure : 1.6 MPa

Two-way Cassette A Series, 4-pipe ｜ DK2A-E/AP+300/400/500/600/700/800
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;1.62~7.20kW
Water flow rate: 0.47~1.22 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 1.09~4.86kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1140 mm × 575 mm × 290 mm ｜ Panel dimension: 1240 mm × 680 mm × 30 mm
Air flow rate (H/M/L) : 255~1,360 m³/h (150~800 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 0.73~3.24kW
Water pressure drop: 30~40 kPa
Power input: 30~130 W
Rated current: 0.14~0.59 A
Sound pressure level: 39~46 dB(A)
Net / Gross weight : 25.0~30.0 / 28.5~33.5 kg
Packing size(L×W×H) : 1315 mm × 740 mm × 300 mm
