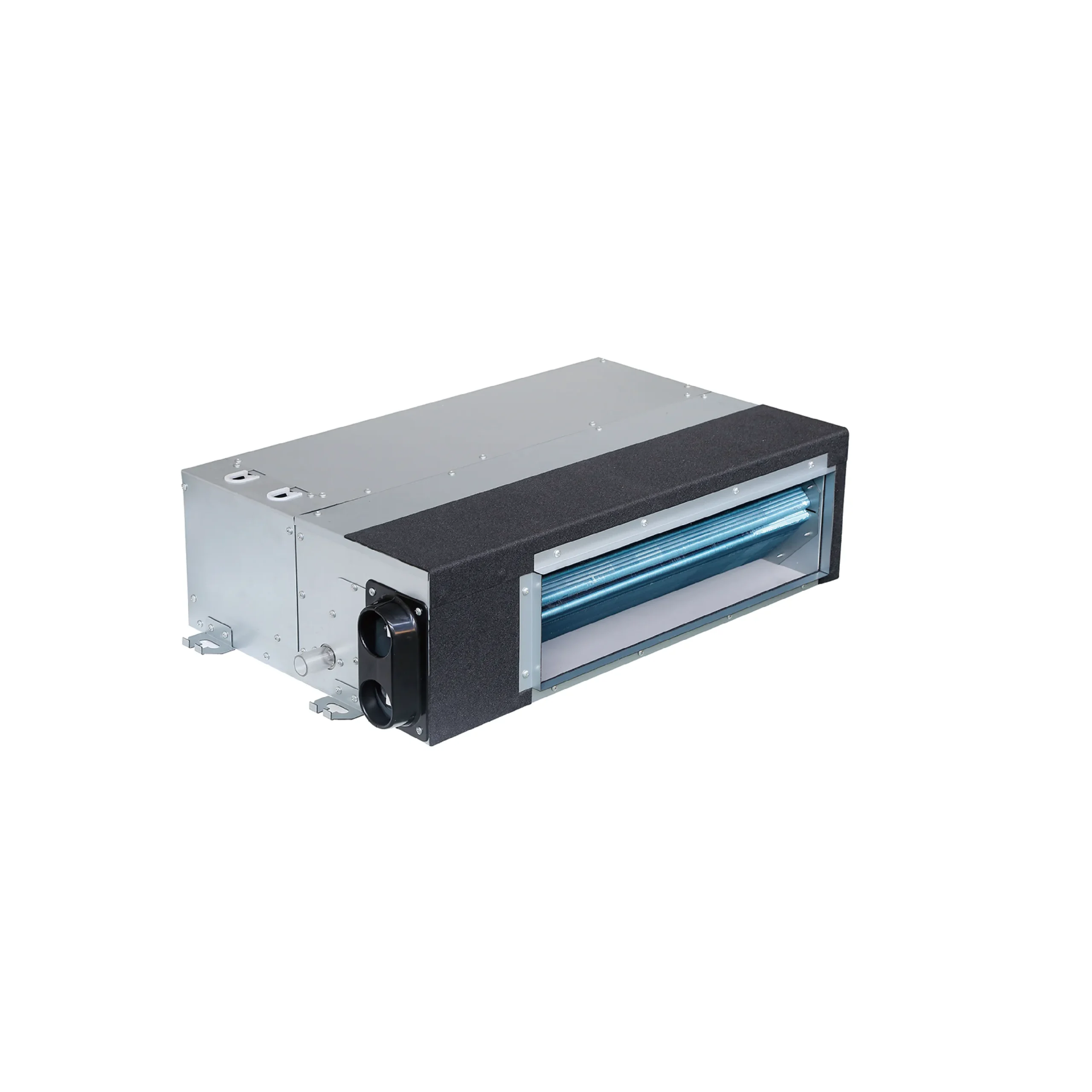

Ultra-slim Duct B Series, 2-pipe ｜ DT3B-E/AG12L+200/300
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;1.08~2.70kW
Water flow rate: 0.31~0.47 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 1.62~4.05kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 889 mm × 451 mm × 200 mm
Air flow rate (H/M/L) : 170~510 m³/h (100~300 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 1.08~2.70kW
Water pressure drop: 30 kPa
Power input: 22~50 W
Rated current: 0.10~0.23 A
Sound pressure level: 37~39 dB(A)
Net / Gross weight : 16.0 / 17.5 kg
Packing size(L×W×H) : 955 mm × 500 mm × 215 mm
Ultra-slim Duct B Series, 2-pipe ｜ DT3B-E/AG12L+400
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;2.16~3.60kW
Water flow rate: 0.61 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 3.24~5.40kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1089 mm × 451 mm × 200 mm
Air flow rate (H/M/L) : 340~680 m³/h (200~400 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 2.16~3.60kW
Water pressure drop: 30 kPa
Power input: 36~60 W
Rated current: 0.16~0.27 A
Sound pressure level: 41 dB(A)
Net / Gross weight : 19.0 / 21.0 kg
Packing size(L×W×H) : 1155 mm × 500 mm × 215 mm
Ultra-slim Duct B Series, 2-pipe ｜ DT3B-E/AG12L+500/600
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;2.70~5.40kW
Water flow rate: 0.77~0.94 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 4.05~8.10kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1289 mm × 451 mm × 200 mm
Air flow rate (H/M/L) : 425~1,020 m³/h (250~600 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 2.70~5.40kW
Water pressure drop: 30~40 kPa
Power input: 44~93 W
Rated current: 0.20~0.42 A
Sound pressure level: 43~45 dB(A)
Net / Gross weight : 22.0 / 25.0 kg
Packing size(L×W×H) : 1355 mm × 500 mm × 215 mm
Ultra-slim Duct B Series, 2-pipe ｜ DT3B-E/AG12L+700/800
Cooling capacity: W 7/12 °C ;A 27 °C DB /19.5°C WB ;3.78~7.20kW
Water flow rate: 1.05~1.22 m³/h
Heating capacity: W(inlet) 60°C; A 21°C DB; 5.67~10.80kW
Motor: DC/AC;
Hydraulic connections: Rc 3/4 ”
Indoor unit dimension(L×W×H) : 1539 mm × 451 mm × 200 mm
Air flow rate (H/M/L) : 595~1,360 m³/h (350~800 CFM)
Power Supply : 220/1/50(60) V/Ph/Hz
Heating capacity: W(inlet) 45°C; A 21°C DB; 3.78~7.20kW
Water pressure drop: 40 kPa
Power input: 67~130 W
Rated current: 0.30~0.59 A
Sound pressure level: 46 dB(A)
Net / Gross weight : 28.0 / 31.5 kg
Packing size(L×W×H) : 1605 mm × 500 mm × 215 mm
A ducted FCU is concealed above the ceiling and distributes conditioned air through ductwork, providing invisible, uniform comfort for offices, hotels, shops and homes.
Standard concealed units offer around 30-80 Pa, while high-static-pressure models reach approximately 120-200 Pa for long or complex duct runs in commercial buildings.
Ultra-thin models are as low as about 200-230 mm in height, allowing installation in shallow ceiling plenums without lowering the ceiling.
Yes. Options include 2-pipe and 4-pipe hydronic coils, electric heater kits and hot-water coils to match the heating source available at the project.
We supply flexible ducts, grilles, filters, wired or wireless controllers, and BMS interfaces as part of complete project packages.
